YK115语音接口模块
KYCX Integrated Circuits Division’s Cybergate™ YK115 DAA module provides a complete telephone line interface circuit including a 2-4 wire
converter for transmit and receive signal separation in a small 1.07" x 1.07" x 1" package. The module provides a fast and cost effective solution for designs that require an interface to the telephone line. The module is designed to meet FCC part 68 requirements, thus providing a low risk design solution.
性能指标

1 Specifications



1.1 Absolute Maximum Ratings @ 25°C

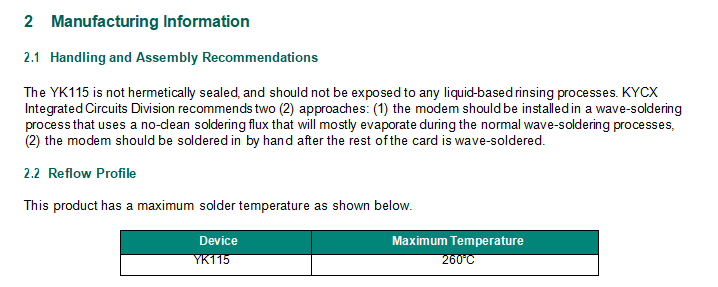

        Absolute maximum ratings are stress ratings. Stresses in excess ofthese ratings can cause permanent damage to the device. Functional operation ofthe device at conditions beyond those indicated in the operational sections ofthis data sheet is not implied.

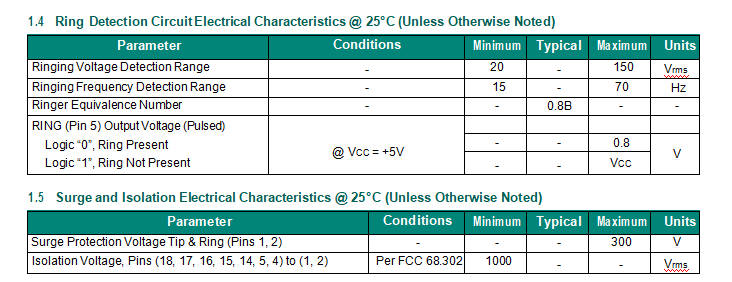

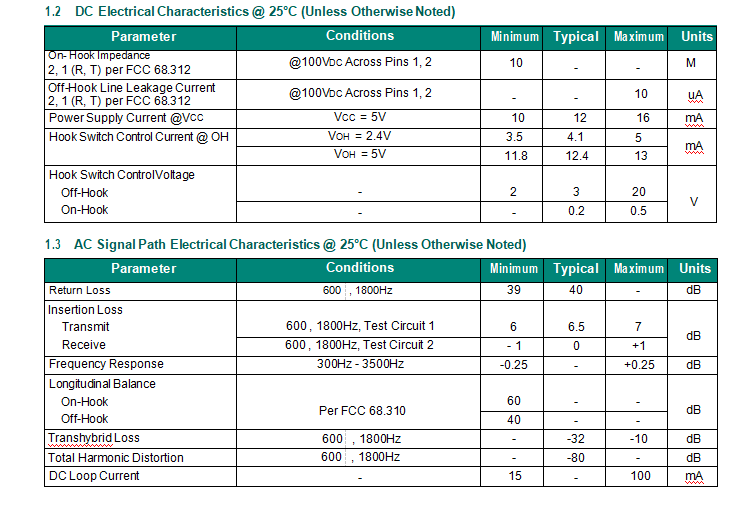

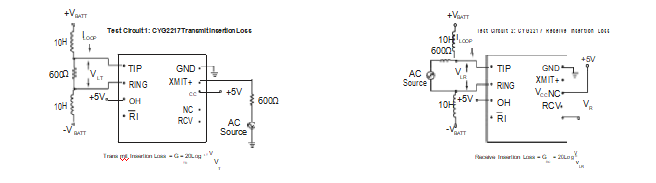

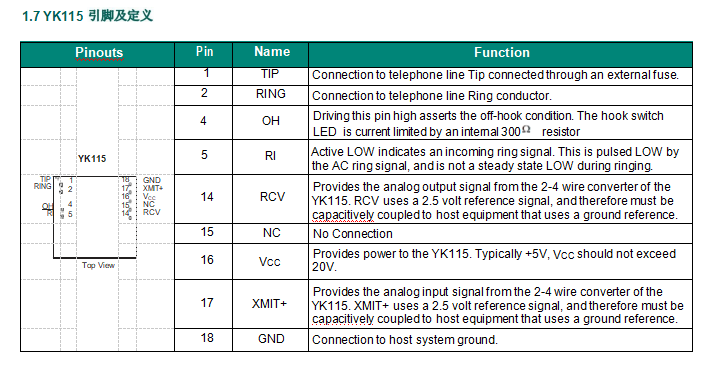

      1.6 测试电路




      2.3外形册寸




功能特点

应用

• Modems

• Fax Machines

• Remote Data Acquisition

• Security Systems

• Voice Mail Systems

• PC Motherboard

• Computer Telephony

• Process Control

• Medical

• PBX

• Direct BroadcastSatellite




功能

•  Low Distortion Transformer Signal Coupling (0.01% max)

• Complete Ring Detector Circuit

• Low Power Hook Switch

• Electronic Inductor/Gyrator Circuit

• Solid State Surge Protection

• Transient Protection Zener Diodes

• Complete Hybrid Circuit (2-4 Wire Converter) Included

• Compatible with All Modem Chip Sets

• V.32 bis/V.34 Compatible

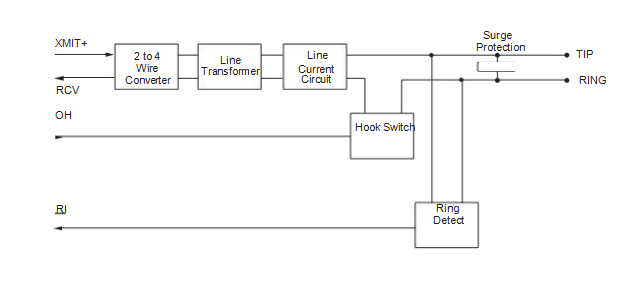

框图



替代型号：CYG2217
